TT711 Ultra-compact Fanless PC
Powered by Intel® Core™ Ultra Series 3 (Panther Lake) processors, the TT711 delivers up to 180 platform TOPS in an ultra-compact, fanless compute, combining high-speed connectivity and flexible expansion for robotics, ground vehicles, avionics/UAV, tactical edge, and agriculture applications.
TT711 Ultra-compact Fanless PC is a next-generation Edge/IoT platform designed for AI, industrial, and real-time video applications. Powered by Intel® Core™ Ultra Series 3 (Panther Lake) processors, it delivers up to 180 platform TOPS for Edge AI workloads.

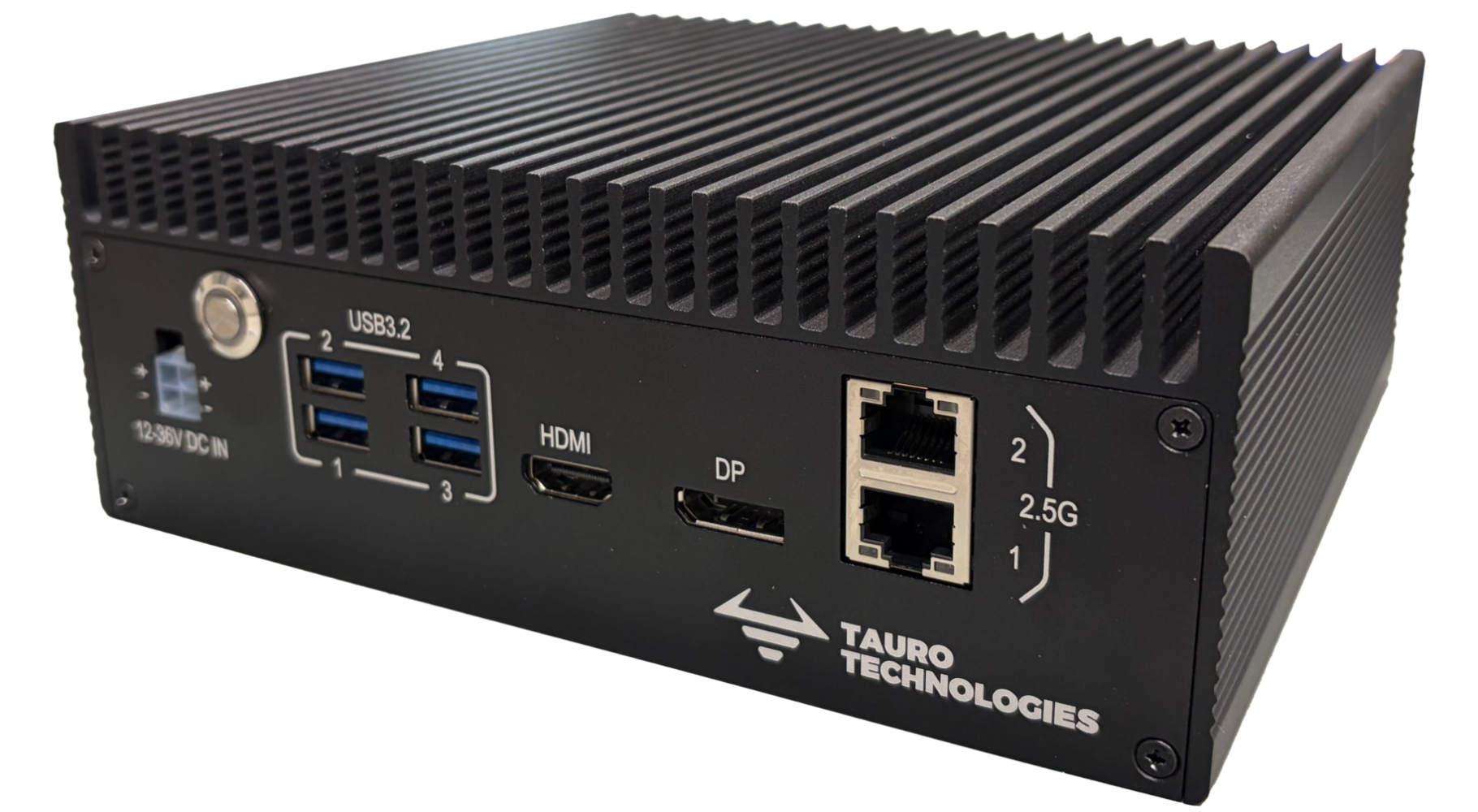

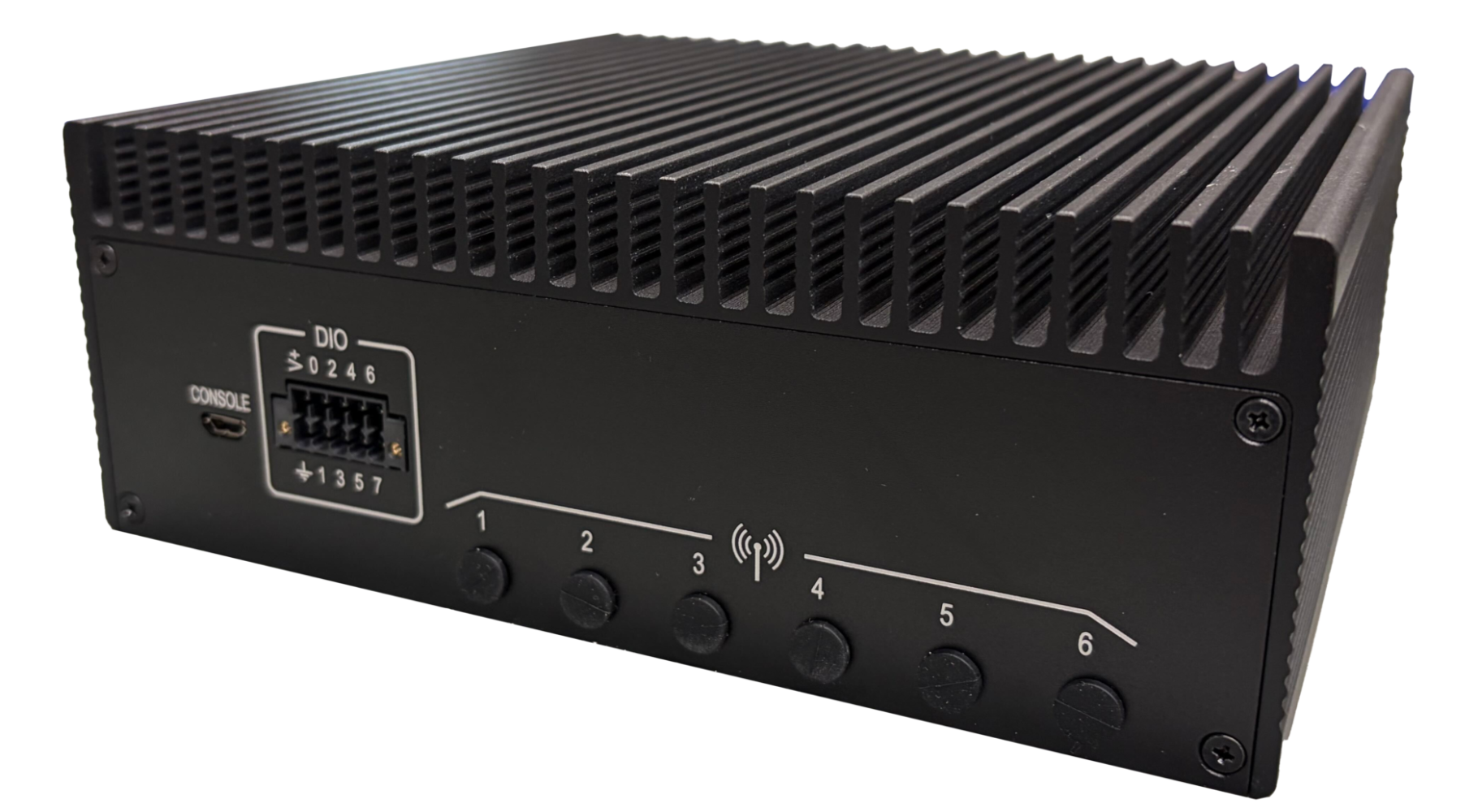

The system provides access to a range of interfaces: quad USB 3.2 ports, DisplayPort 2.1, HDMI, and digital I/O via a bidirectional GPIO buffer. For networking, the TT711 integrates dual 2.5GbE ports for high-speed industrial and edge connectivity. Expansion flexibility is provided via PCIe Gen4 x4 lanes for M.2 M-Key NVMe storage and PCIe Gen4 x2 lanes for M.2 E-Key Wi-Fi/Bluetooth module. Additional features include dual-channel DDR5-7200 SO-DIMM memory, TPM, console access through debug interfaces, and a wide-range 12V–36V DC power input.
Compact and rugged, the TT711 Ultra-compact Fanless PC is an all-in-one solution for edge AI, robotics, and in-vehicle systems, combining high-speed networking, modular expansion capabilities, high reliability, flexible connectivity, and robust performance to tackle the most challenging environments.
Intel® Core™Ultra Series 3 (Panther Lake) processor with up to 180 platform TOPS
Up to 128GB DDR5 memory
Compact Industrial-grade design
4K display support & high-speed connectivity
M.2 Slots for LTE/5G/Wi-Fi and storage
