TT316 Rugged Fanless AGX Thor Controller
The TT316 is an IP67 waterproof and dustproof AI compute platform enabling high-performance edge inference and real-time video analytics making it ideal for commercial and industrial applications.
The TT316 Rugged Fanless Thor is an IP67 waterproof AI compute platform built around the powerful NVIDIA® Jetson AGX Thor™ module. It features a 14-core ARM Poseidon-AE 64-bit CPU, an NVIDIA Blackwell Architecture GPU with 2560 CUDA® cores and 96 4th Gen Tensor Cores, and 128GB LPDDR5x DRAM running at 4266 MHz with 273 GB/s bandwidth, making it ideal for commercial and industrial applications.
Delivering up to 1050 FP8 TFLOPs/2100 FP4 TFLOPs of AI compute, the TT316 enables in high-performance edge inference and real-time video analytics. The system offers a wide range of latest-generation interfaces on the Jetson AGX Thor: 4x 25GbE through MTP fiber, Gigabit Ethernet, USB Type-C for KVM, 4x protected GPIO, 2x M.2 M-Key Slots (PCIe x2 and x4), and USB 2.0.
The platform integrates the NXP SE050 Secure Element, providing hardware root of trust, secure credential storage, and cryptographic acceleration. With EAL 6+ certification, it ensures strong protection for security-critical AI and IoT applications.
The TT316 supports 18V to 36V DC wide-range input and two built-in system control buttons for reset and force recovery. Rugged M12 connectors and an IP67-rated enclosure with a built-in heatsink guarantee reliable operation even in harsh environments, eliminating the need for additional cooling while providing robust protection against environmental challenges.
- Powered by NVIDIA Jetson AGX Thor
- Rugged IP67 Waterproof Design
- NVIDIA Blackwell GPU with 2560 CUDA® cores and 96 4th Gen Tensor Cores
- x1 MTP 100GbE (4x 25GbE)
- 4K Graphics & High-Speed Communication
- 2x M.2 PCIe Expansion Slots (PCIe x2 and x4) for Storage
- 2x Built-in Buttons for System Maintenance and Recovery
- NXP SE050 Secure Element for Secure AI & IoT Operations
Related Products

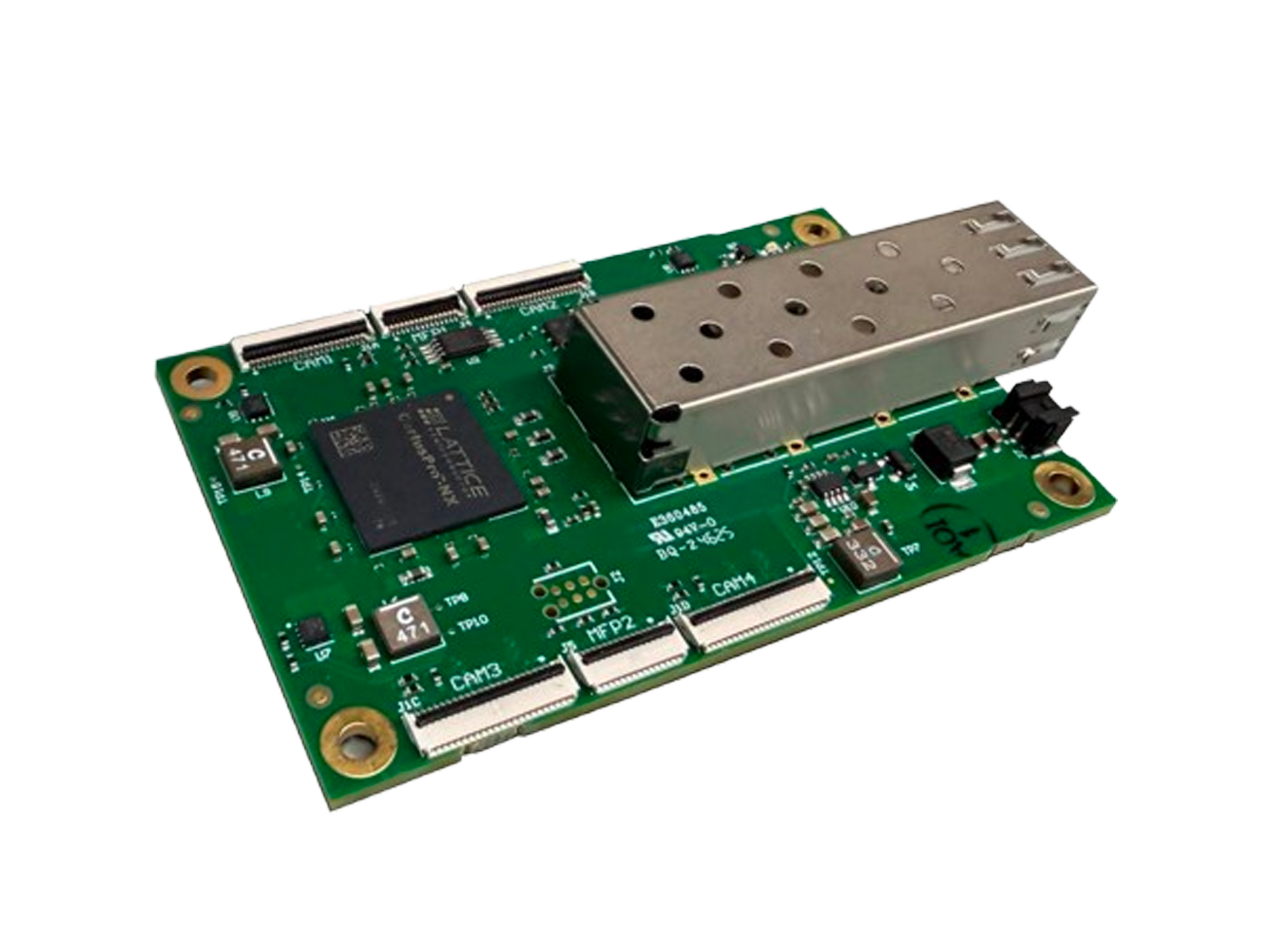

DA322 Holoscan MIPI Adapter
DA322 is a compact solution that integrates x4 MIPI CSI-2 interfaces enabling low-latency data ingest from diverse sensors – including cameras, radars, LiDARs, and RF sensors – over a single Ethernet interface.
TT314 Rugged Industrial AGX Thor Platform
TT310 is a rugged, IP67-rated waterproof compute platform, delivering exceptional AI performance with low power consumption in a compact form factor, making it suitable for autonomous vehicles, UAVs, and Robotics.
TT312 AGX Thor Platform
DA326 is a compact solution that integrates x2 GMSL2/3 interfaces, enabling simultaneous high-bandwidth connections to diverse sensors – including cameras, radars, lidars, and RF sensors – over a single Ethernet link.

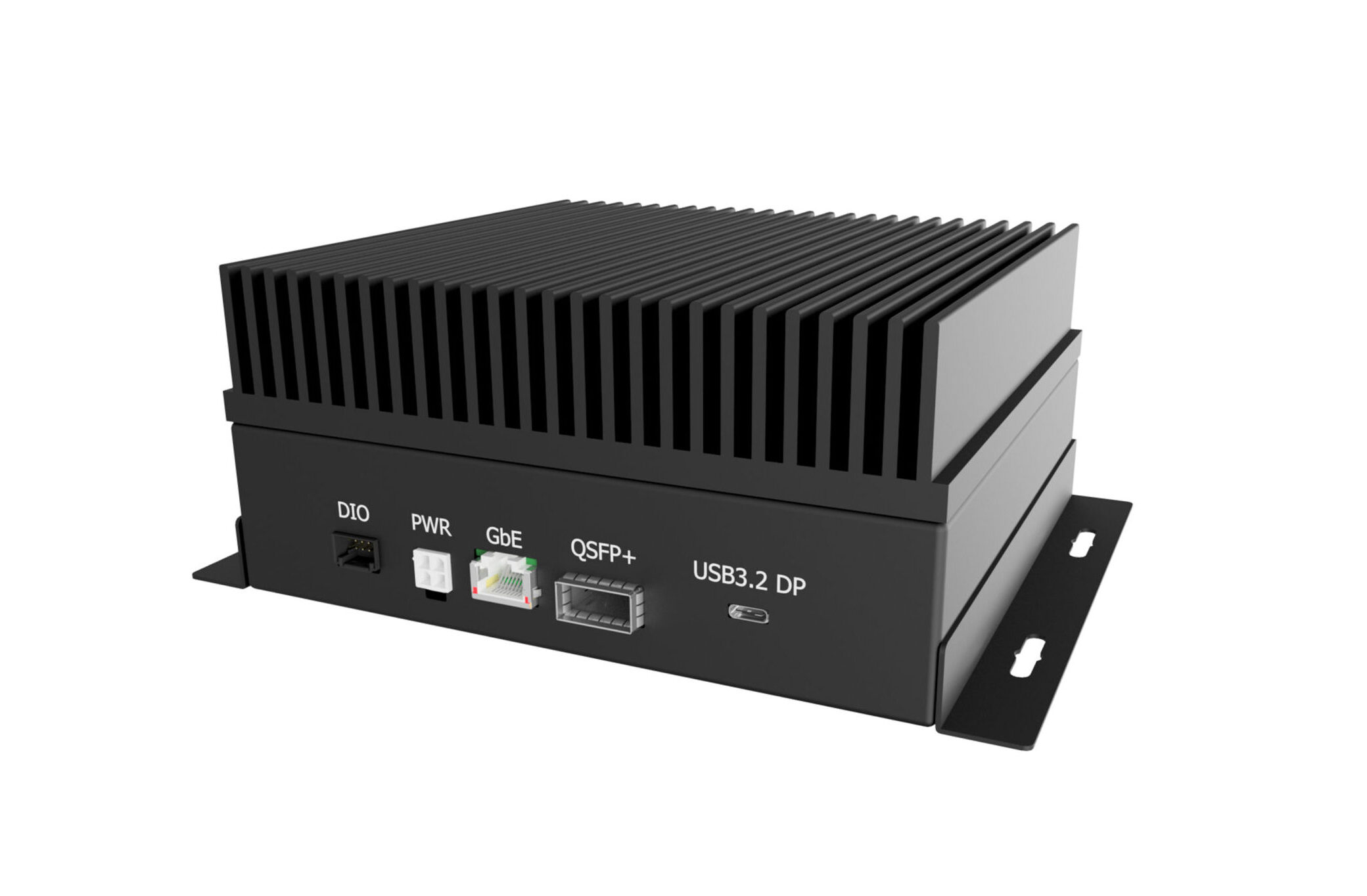

TT315 Rugged AGX Thor Platform
