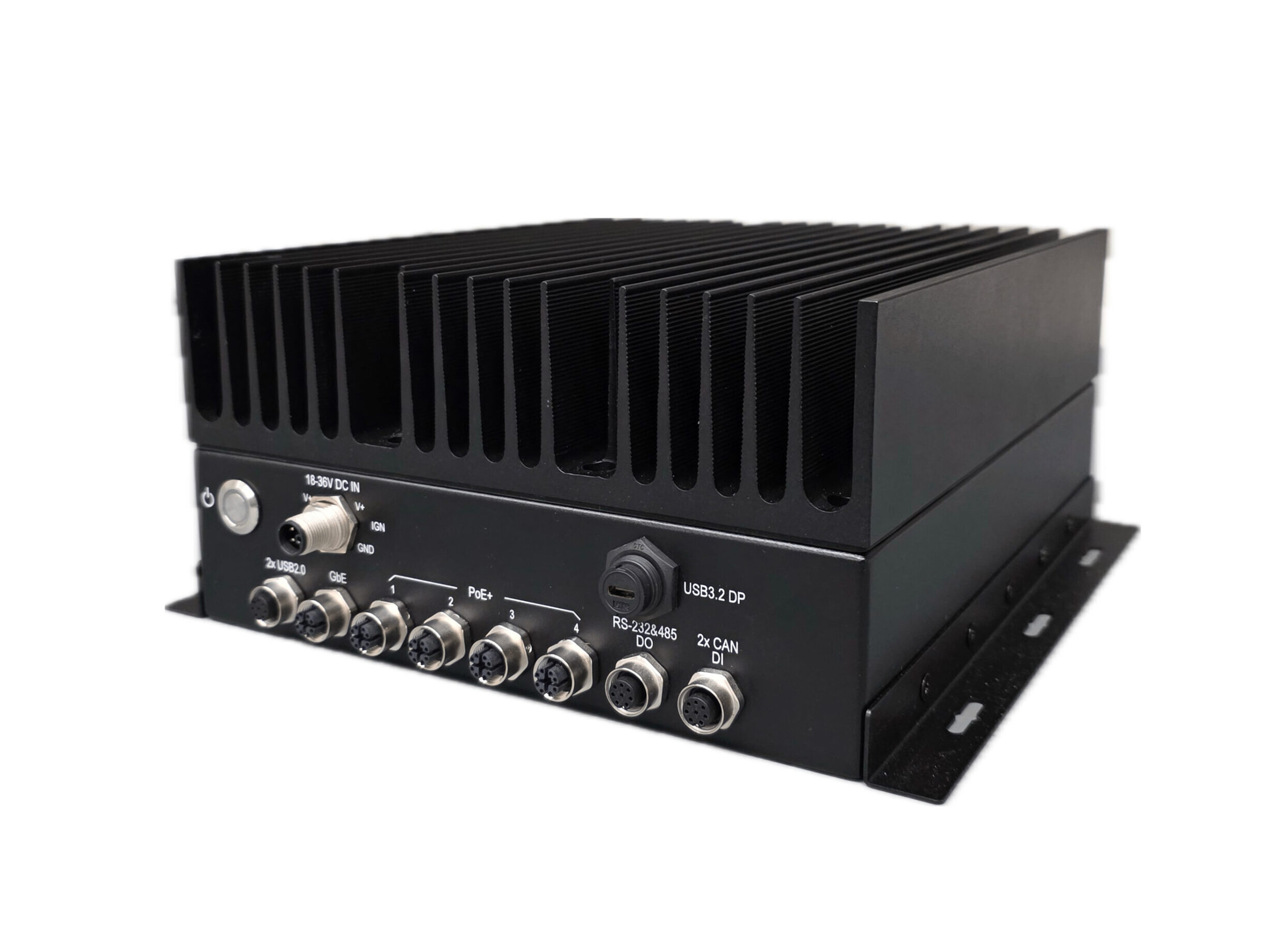

TT310 Rugged AGX Orin Platform
TT310 is a rugged, IP67-rated waterproof compute platform, delivering exceptional AI performance with flexible I/O interfaces making it suitable for autonomous vehicles, UAVs, and Robotics.
TT310 AGX Orin is a rugged, IP67 waterproof compute platform, engineered to be fully compatible with NVIDIA Jetson AGX Orin modules, allowing flexible configuration based on customer requirements. It delivers exceptional AI performance with flexible I/O interfaces in a compact form factor. It provides up to 275 TOPS with Jetson AGX Orin, making it suitable for autonomous vehicles, UAVs, and Robotics, enabling real-time video processing and AI workloads to simultaneously transcode up to 22 1080p video streams.
The waterproof USB 3.2 Type-C connector provides 4K Display Port output combined with USB 3.2 high-speed data transfer interface. x5 waterproof M12 GbE ports are also provided for high-speed data communication.
TT310 supports 18V to 36V wide-range DC input with ignition power control, x2 isolated CAN bus ports, an RS-232 port, and an isolated RS-485 port, making it ideal for in-vehicle deployment.
Expansion options include M.2 and mini-PCIe slots for 5G/LTE or Wi-Fi modules and M.2 NVMe storage for additional storage needs. It also provides an MCU for system monitoring.
TT310 is an all-in-one solution for industrial vehicles, outdoor robotics, and edge AI inspection systems.
- NVIDIA Jetson AGX Orin 32GB/64GB SOM up to 275 TOPS
- x4 waterproof M12 Gigabit Ethernet with PoE+
- x1 waterproof M12 Gigabit Ethernet non-PoE
- 4K Graphics & USB 3.2 High-Speed Interface
- M.2 and Mini PCIe Expansion Slots for LTE/5G/Wi-Fi and Storage
- MCU for System Monitoring
- Rugged IP67 Waterproof Design
